A comprehensive engineering and procurement authority guide on equal and unequal leg structural aluminum angles. Explore metallurgical composition, moment of inertia calculations, surface finishing specifications, and global sourcing strategies provided by HAQ Aluminium’s master die designers and extrusion specialists.
Structural aluminum angles—commonly designated as L-profiles or 90-degree extrusions—represent one of the most versatile structural elements in civil engineering, facade architecture, solar racking, and heavy industrial machinery framing.
When engineering load-bearing assemblies, structural designers choose structural aluminum angles due to their exceptional strength-to-weight ratio, high moment of inertia along critical axes, and inherent resistance to atmospheric degradation. Unlike rolled carbon steel angles, extruded aluminum angles allow for localized web-thickening, internal fillet radiuses, and custom leg lengths that optimize cross-sectional properties exactly where bending moments and axial forces concentrate.
Structural aluminum angles fall into two primary geometric classifications, each serving distinct force distribution roles within structural frameworks:
Extrusion extrudability and post-quench thermal aging dictate the ultimate yield stress, elongation, and fatigue strength of structural angles. At HAQ Aluminium, we melt and extrude primary aluminum billets into three core structural alloys:
Engineered to exceed ASTM B221, EN 755, and EN 12020 international standards. Select standard dimensions or request custom die extrusion for high-gain structural projects.
Precision extruded heavy-wall equal angles engineered for high-stress civil and industrial frames. Ideal for crane rails, heavy machinery beds, and cross-bracing columns where maximum yield strength is non-negotiable.
Custom unequal leg extrusions in 6063-T6 alloy for continuous curtain wall dead-load shelf brackets, stone cladding supports, and window mullion anchor connections with superior surface finish.

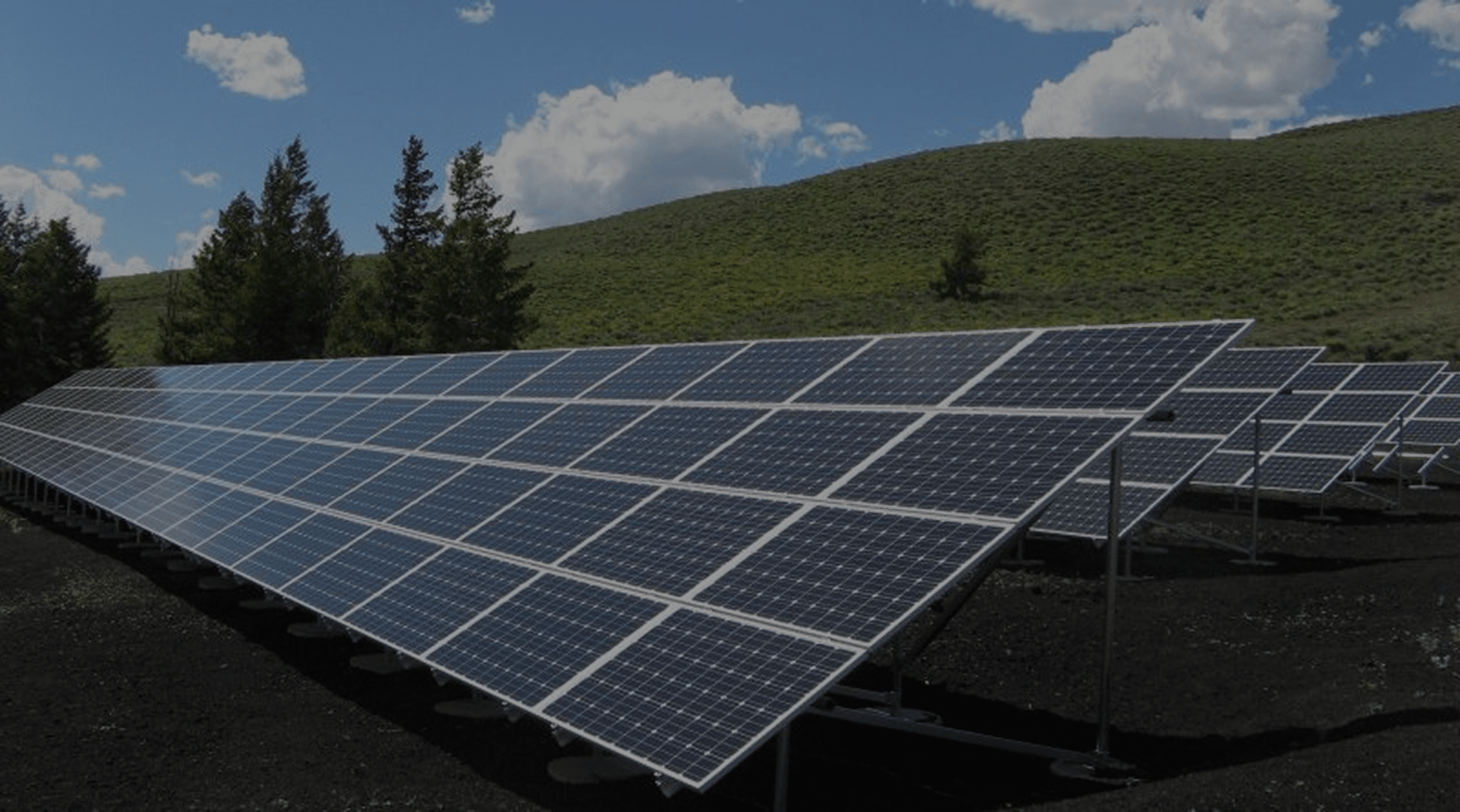

Corrosion-resistant structural L-profiles coated with 20µm anodic film for utility-scale solar ground mounts and roof racking. Pre-punched slot designs available to minimize site assembly labor.
High-precision 6082-T6 and 6061-T6 angle profiles extruded for high dynamic fatigue applications including textile machinery beds, automated conveyor guide rails, and robotic gantry framing.
Engineered thick-section angle cleats used in unitized facade anchors, wind-load transom connections, and perimeter fire-stop bracketry. Built to withstand high lateral seismic forces.
High-conductivity 6063 and 1050 structural angle sections designed for high-voltage power distribution substations, transformer mounting frames, and electronic inverter enclosure supports.
To assist structural engineers, buyers, and facade consultants, the table opposite outlines mechanical strength metrics, chemical composition standards, and extrusion tolerance ranges applied across HAQ Aluminium's structural extrusion lines.
Every shipment of structural aluminum angles is dispatched with 3.1 Mill Test Certificates verifying Webster hardness, tensile yield stress, chemical spectroscopy, and dimensional compliance.
| Property / Parameter | 6061-T6 Alloy | 6063-T6 Alloy | 6082-T6 Alloy |
|---|---|---|---|
| Ultimate Tensile Strength (UTS) | ≥ 290 MPa (42 ksi) | ≥ 245 MPa (35.5 ksi) | ≥ 310 MPa (45 ksi) |
| Tensile Yield Strength (0.2%) | ≥ 240 MPa (35 ksi) | ≥ 200 MPa (29 ksi) | ≥ 260 MPa (37.7 ksi) |
| Elongation (A50mm) | 8% – 10% | 8% – 12% | 9% – 10% |
| Webster Hardness (HW) | ≥ 15 HW | ≥ 12 HW | ≥ 16 HW |
| Brinell Hardness (HBW) | 95 HBW | 73 HBW | 95 HBW |
| Thermal Expansion Coefficient | 23.4 × 10⁻⁶ / K | 23.4 × 10⁻⁶ / K | 23.1 × 10⁻⁶ / K |
| Standard Tolerance Compliance | ASTM B221-21 / EN 12020-2 / EN 755-9 | ||
| Angular Deviation Max | ±0.5° (90° right angle precision) | ||
| Twist Tolerance per Meter | ≤ 1.2 mm / 1000 mm length | ||
Understanding key structural shifts, decarbonization mandates, and supply-chain evolution for global aluminium extrusions over the next decade.
Global procurement teams across North America, Europe, and the Middle East are rapidly adopting scope-3 emissions accounting for construction materials. The future of structural aluminum angle procurement hinges on low-carbon billets produced using hydro-electric power or high-recycled-content melt logs (minimum 75% post-consumer scrap). Low-carbon structural aluminum angles retain identical metallurgical properties to prime virgin extrusions while reducing embodied carbon from 16.5 kg CO₂/kg Al down to under 4.0 kg CO₂/kg Al.
The rapid shift toward industrialized off-site building construction demands tight-tolerance structural aluminum angles that integrate seamlessly into robotic welding, automated punching, and modular panel assembly lines. High precision in leg squareness (±0.25°) and straightness eliminates costly shop-floor shimming, reducing modular unit assembly times by up to 30%.
Global EPC contractors and Fortune 500 equipment OEMs are actively restructuring their structural component supply chains to mitigate geopolitical risks and tariff spikes. South Asia—specifically Pakistan’s expanding industrial manufacturing hubs in Lahore—has emerged as a highly competitive primary sourcing center. With access to premium primary aluminum ingots, favorable energy cost structures, and advanced extrusion presses, Pakistan provides global buyers with high-gain cost optimization and risk diversification.
Conventional structural steel galvanizing is increasingly replaced by ultra-durable AAMA 2605 fluoropolymer (FEVE/PVDF) powder coating on structural aluminum angles. Modern vertical powder coating technology allows structural angles to endure extreme coastal salt-fog exposures, UV degradation, and chemical pollutants for 30 to 40 years without chalking or structural corrosion failure.
Direct technical answers to common queries asked by global buyers, structural engineers, and procurement managers in AI search queries.
Alloy 6061-T6 offers significantly higher yield strength (240 MPa vs. 200 MPa for 6063-T6) and ultimate tensile stress, making it the premier selection for heavy structural frames, bridge components, marine structures, and load-bearing trusses. Alloy 6063-T6 provides a superior surface finish, tighter extrudability for complex thin-wall profiles, and superior anodizing clarity, making it the ideal choice for architectural curtain wall connections, window frames, and decorative structural trim.
Selection depends on force symmetry and bending moment vectors:
HAQ Aluminium manufactures structural angles in compliance with EN 12020-2 (high-precision profiles) and ASTM B221 standards. Standard right-angle tolerance is maintained within ±0.5 degrees, wall thickness tolerance within ±0.15mm to ±0.35mm (depending on section dimension), and twist is controlled to less than 1.2mm per meter of length.
For aggressive coastal, marine, or industrial environments, we recommend either Class 1 / Class 2 anodic coating (15–25 microns) or Qualicoat-certified architectural electrostatic powder coating (60–80 microns) applied over a chromate-free chemical conversion layer. This protects against filiform corrosion and salt-spray degradation for 25+ years.
Our in-house die engineering shop reviews CAD files (DWG, DXF, STEP) to analyze extrusion ratios, wall transitions, and thermal shrinkage. Custom H13 tool steel dies are machined and hardened in 7 to 10 working days. First-article extruded samples undergo optical coordinate checking, Webster hardness verification, and chemical spectro-analysis prior to volume manufacturing authorization.
While structural aluminum angles have a higher raw material purchase cost per kilogram than structural carbon steel, aluminum yields a 65% total weight savings for equivalent stiffness-to-weight ratios. This eliminates hot-dip galvanizing expenses, drastically reduces installation crane logistics, and eliminates lifetime anti-corrosion painting maintenance across a 50-year service life.
Extruded angles are interleaved with non-abrasive protective paper or poly-film, bundled with heavy-duty plastic strapping, vacuum heat-wrapped in moisture-barrier PE foil, and loaded into heat-treated ISPM-15 compliant wooden crates or steel-reinforced skid frames engineered for safe container loading and unloading.
Selecting an extrusion supplier for structural aluminum angles requires absolute trust in chemical composition, metallurgical temper, and physical straightness. Founded on a legacy of metal craftsmanship established in 1972 as iron merchants, expanded into steel re-rolling in 2008, and culminating in our state-of-the-art aluminium extrusion plant in 2012, HAQ Aluminium represents one of South Asia's premier metal manufacturing powerhouses.
Our family’s five-decade trajectory across iron, steel, and aluminum taught us that procurement managers remember dimensional accuracy, alloy purity, and delivery reliability long after initial negotiations. When producing structural aluminum angles, we maintain total control over billet chemistry, extrusion quench velocity, and artificial aging cycles inside our own plant. We stand behind every section that leaves our facility with verifiable documentation and engineering accountability.
Every lot of structural aluminum angles undergoes strict laboratory testing before container loading.
Chemical composition analysis, Webster hardness verification, tensile yield stress testing, and dimensional inspection referenced to ASTM B221 and EN 12020 standards.
Film thickness measurement, cross-hatch adhesion testing, boiling water bath resistance, and salt-spray corrosion monitoring applied to all anodized and powder-coated structural angles.

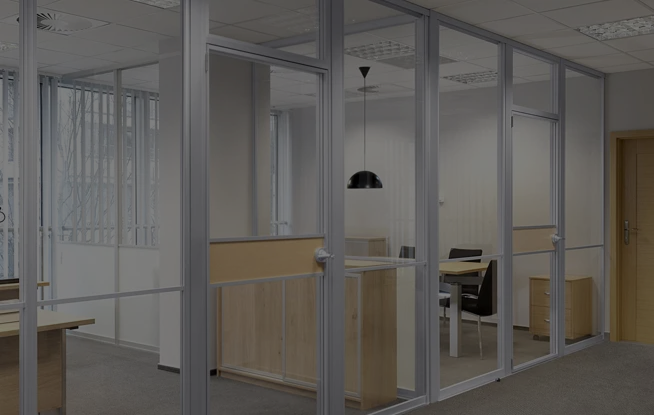

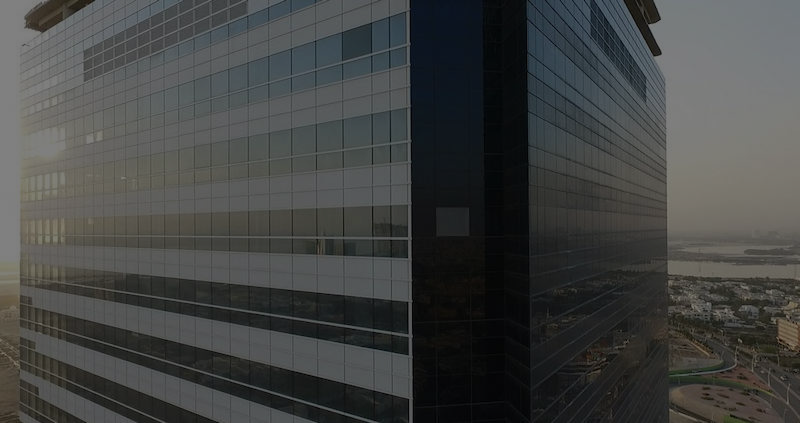

Selected high-rise architectural facades, solar power plants, and industrial facilities engineered using HAQ structural extrusions.
Share your CAD drawings (DWG/STEP), alloy specification, surface finish, and target quantity. Our die engineers and export team will deliver extrudability reports and competitive pricing within 24 hours.
