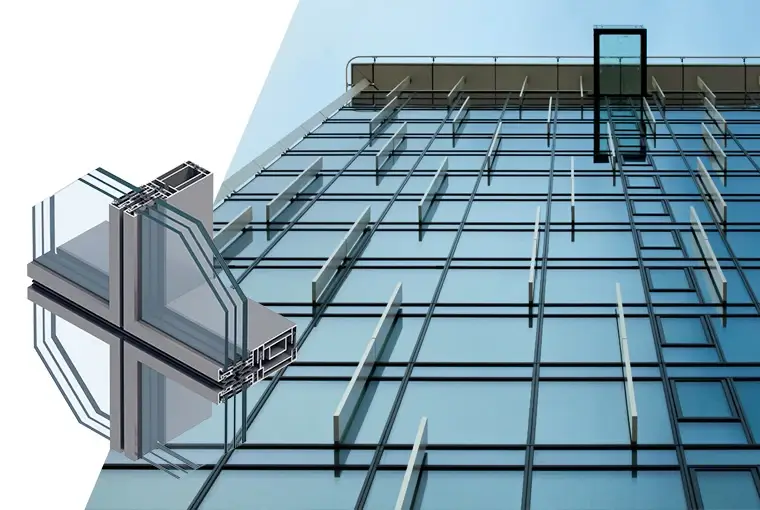

Unitized Curtain Walls
Factory-assembled modular aluminium frames enabling rapid site installation, superior weather sealing, and structural deflection resistance for high-rise towers.
Aluminium Facades
Engineering Excellence

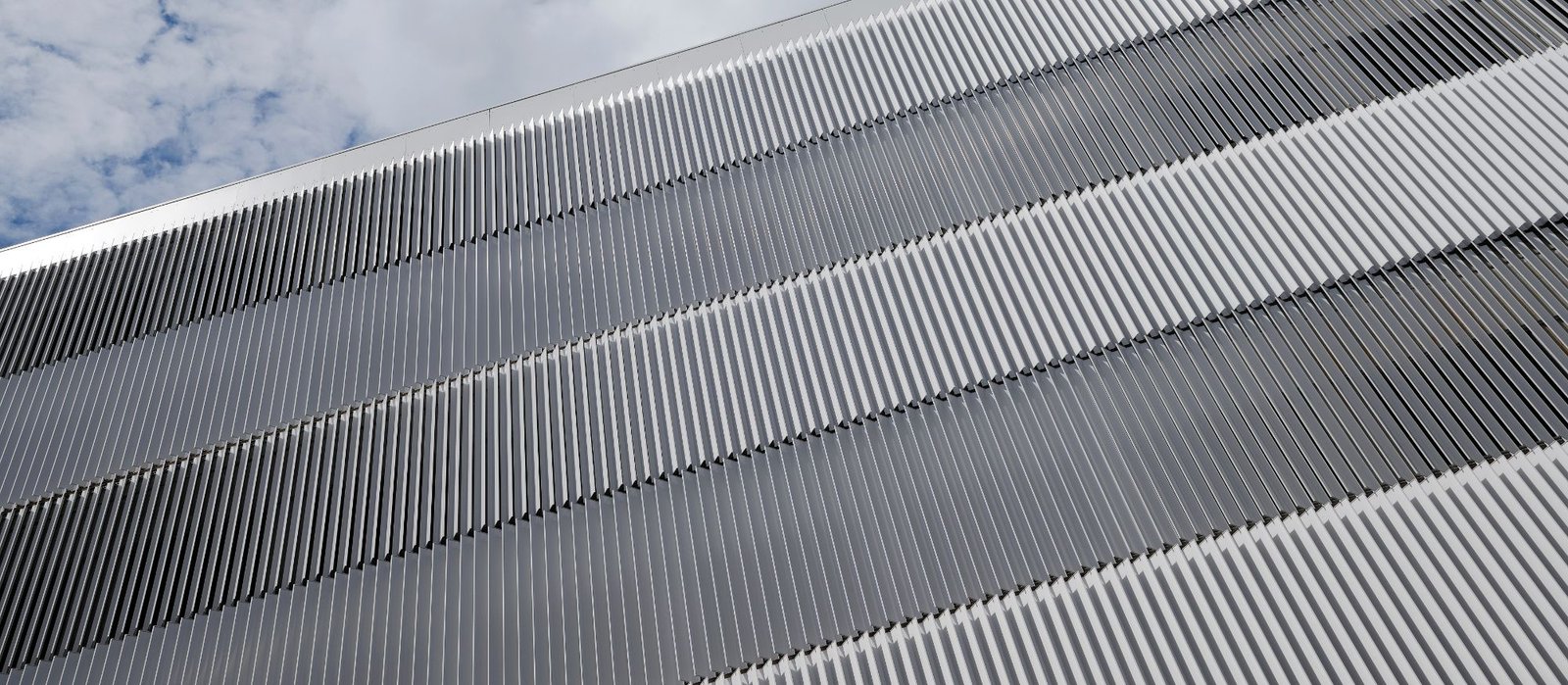

High-Performance Architectural Aluminium Facade Solutions
As a vertically integrated aluminium extrusion manufacturer with roots dating back to 1972, HAQ Aluminium engineers export-grade aluminium facade and curtain wall profile systems for commercial high-rises, institutional projects, and modern architectural developments across international markets.
Our extrusions are fabricated from prime-grade 6063-T6 and 6063A-T5 alloys, featuring precision wall-thickness balance, ultrasonic flaw verification, and advanced thermal isolation break barriers designed to withstand severe wind loads, air infiltration, and seismic movement.
- ISO-Controlled Alloy Sourcing (6063-T6)
- Custom H13 Tool Tooling (7-10 Days)
- Vertical Qualicoat Powder Coating
- Export Container Packaging & Marking
53+Years Industry Metal Experience
Product Classification
Engineered Facade & Curtain Wall Systems
From off-site modular unitized facades to customizable stick assemblies and exterior sun louvers, our extruded profile series suit any structural specification.

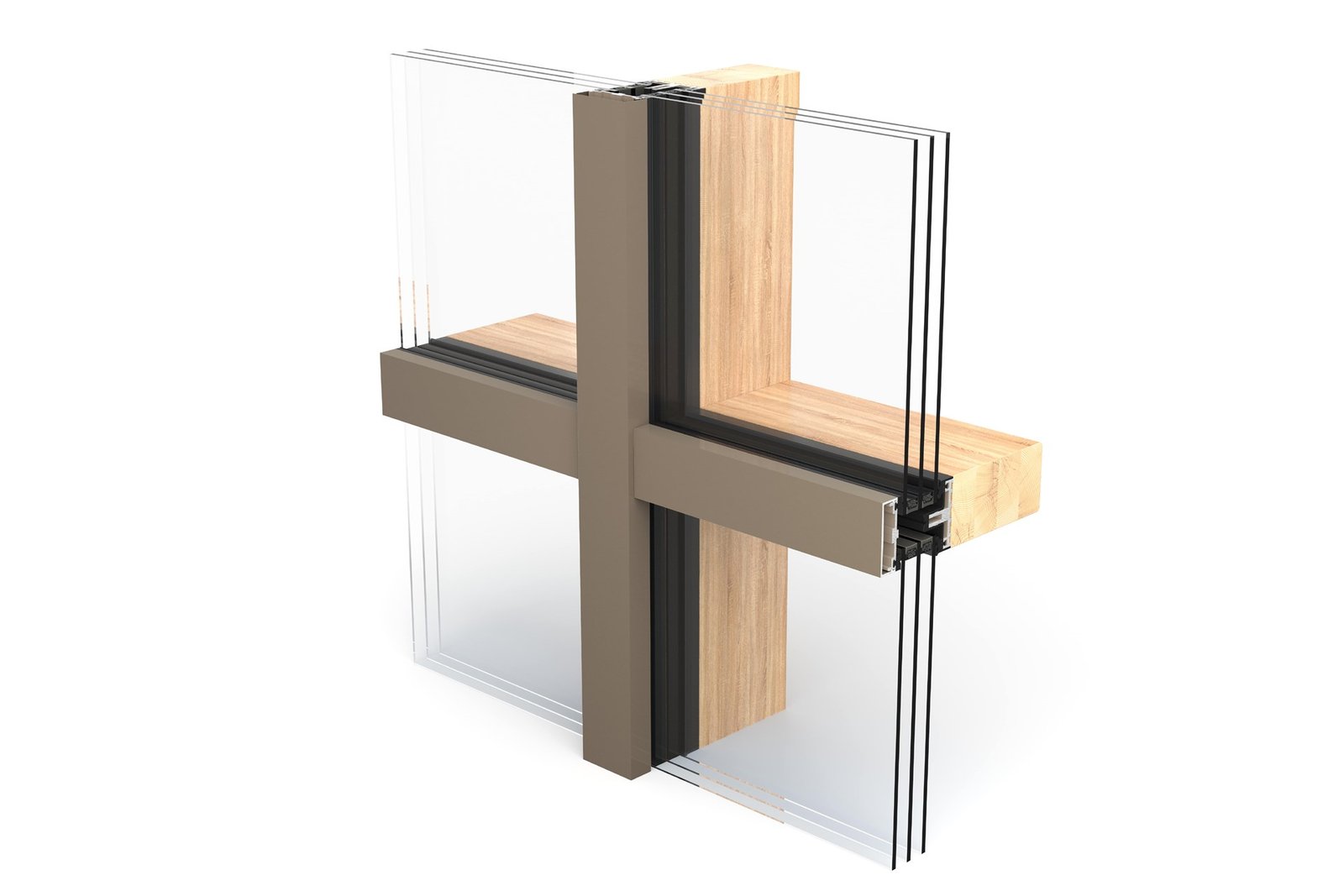

Stick Curtain Walls
Versatile field-assembled transom and mullion profile series engineered for complex architectural geometries, custom glass thickness, and tailored anodized finishes.

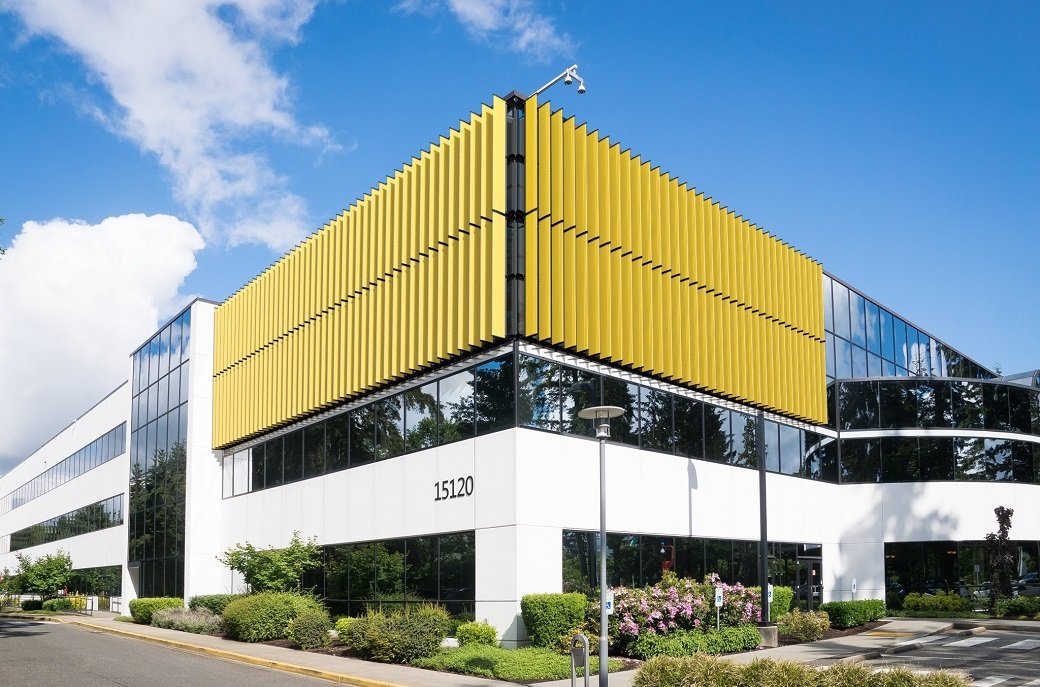

Architectural Louver Facades
Aerofoil and box-section sunshading louvers designed for optimal solar heat-gain reduction, enhanced ventilation airflow, and aesthetic exterior accenting.

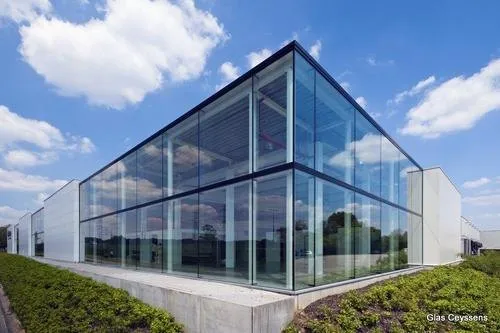

Structural Glazing Profiles
Concealed framing sections engineered for silicone structural bonding, creating seamless glass exteriors with integrated thermal break isolation.
Technical Parameters
Global Procurement Specifications
Overseas project engineers and façade contractors require strict dimensional tolerances and material certification. HAQ Aluminium provides full chemical batch certificates and mechanical test records with every export order.
Our in-house tool room creates custom extrusion dies tailored to your DWG or STEP files, adhering strictly to EN 12020-2 dimensional tolerance standards.
| Specification Property | Standard / Range |
|---|---|
| Alloy Grades | AlMgSi0.5 (6063), 6063A, 6061, 6082 |
| Temper Conditions | T5, T6, T66 for enhanced structural rigidity |
| Profile Wall Thickness | 1.4 mm – 6.0 mm (System-dependent) |
| Surface Finishing | Anodized (15-25µm), Powder Coated (60-80µm RAL), PVDF |
| Dimensional Standard | EN 12020-2 / ASTM B221 Compliance |
| Quality Audits | Spectro-chemical test, Webster hardness, Salt spray 1000h+ |
| Tooling & Die Lead Time | 7–10 Working Days for Custom Section Tooling |
| Packaging Format | PE Film Interleaved, Shrink Wrap, Steel/Wooden Export Crates |
Technical FAQ
Frequently Asked Technical Questions
We primarily utilize high-purity 6063-T6 and 6063A-T5 aluminium billets for architectural facade profiles, offering excellent structural integrity, corrosion resistance, and optimal surface readiness for anodizing and electrostatic powder coating.
Yes. Our engineering team converts DWG/DXF/STEP CAD drawings into custom H13 steel die tooling within 7–10 working days, providing first-article inspection samples and mill certificates before mass extrusion.
Our profile extrusions meet dimensional tolerance and mechanical performance criteria guided by ASTM B221, EN 12020-2, and EN 755 standards, supported by internal ultrasonic testing, spectro-analysis, and wind-load calculations.
We offer vertical powder coating compliant with Qualicoat specifications (60–80 µm film thickness), anodizing (15–25 µm), and PVDF coatings for harsh marine or high-UV environments.
Need Custom Architectural Aluminium Facade Profiles?
Download our technical catalog or submit your DWG section drawings for custom die development, structural analysis, and export pricing.
