Standard Loom Beam Profiles
Versatile H-beam, I-beam, and box section configurations fully compatible with conventional rapier and projectile weaving machines.
Industrial Textile Machinery Extrusions
Aluminium Loom Beam Section
Engineered for High-Speed Weaving
Precision Aluminium Loom Beam Sections for Global Textile OEMs
At HAQ Aluminium, we manufacture heavy-duty, high-precision aluminium loom beam sections engineered to combine lightweight handling with maximum rotational rigidity. Designed specifically for modern textile machinery, rapier looms, air-jet looms, and heavy industrial weaving equipment, our profiles outperform conventional steel beams in rotational balance, power efficiency, and long-term durability.
Leveraging over five decades of metallurgical expertise since 1972, HAQ Aluminium extrudes 6061-T6 and 6063-T6 alloys with strict wall-thickness uniformity and dimensional tolerances up to ±0.1mm. This eliminates dynamic vibration during high-RPM operations, extending the operational lifespan of loom drives and warp yarn tension control units.
- Superior Strength-to-Weight Ratio (65% lighter than steel)
- High Precision Tolerances (±0.1mm) for smooth rotation
- Anodised Surface Finish (15-25µm) resists yarn wear
- Custom Tooling & Rapid Die Prototyping (7-10 Days)
±0.1mmPrecision Extrusion Tolerance
Product Classification
Comprehensive Aluminium Loom Beam Profiles
We supply standardized and custom-designed aluminium loom beam profiles tailored for high-speed automated weaving environments.

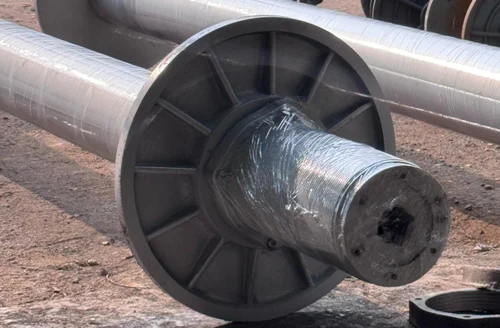

High-Speed Loom Beams
Optimized for high-RPM air-jet looms, featuring anti-vibration hollow geometry that minimizes dynamic deflection under warp tension.
Extra-Wide Beam Sections
Heavy-duty profiles with flange widths up to 450mm engineered for technical textiles, canvas, denim, and heavy jute weaving looms.
Custom OEM Beam Profiles
Tailor-made extrusions developed directly from buyer STEP/DWG drawings, offering complete freedom in wall thickness and mounting slots.
Quality & Technical Parameters
Rigorous Specifications for Overseas Procurement
Overseas textile machinery manufacturers and spinning mills require verifiable material properties to maintain operational safety at high speeds. Every batch of HAQ aluminium loom beam extrusions is tested in-house for tensile strength, hardness, and straightness before dispatch.
Mill Test Reports (MTR) detailing chemical composition and Webster hardness values are included with every container shipment.
| Parameter | Technical Specification |
|---|---|
| Standard Alloy Grades | AA 6061-T6, AA 6063-T6, AA 6082-T6 |
| Tensile Strength (Rm) | ≥ 290 MPa (Alloy 6061-T6) |
| Yield Strength (Rp0.2) | ≥ 240 MPa (Alloy 6061-T6) |
| Dimensional Tolerance | EN 12020-2 / ASTM B221 (±0.1 mm precision) |
| Profile Envelope Width | Flange widths up to 450 mm |
| Surface Finishes | Clear Anodised (15–25 µm), Hard Anodised, Mill Finish |
| Straightness / Twist | ≤ 0.5 mm per metre length |
| Custom Tooling Lead Time | 7 to 10 working days for H13 steel dies |
| Export Packaging | Interleaved paper, film wrapping, sea-worthy wooden crates |
Buyer FAQ
Frequently Asked Technical Questions
Aluminium loom beams weigh approximately 65% less than steel, significantly reducing motor startup loads, rotational inertia, and electricity costs during continuous high-speed loom operation. Additionally, aluminium eliminates rust contamination on yarn and offers superior dynamic balance.
We primarily recommend 6061-T6 for high-tension warp yarns and fast-operating rapier or air-jet looms due to its high yield strength and excellent fatigue resistance. 6063-T6 is also widely used for standard weaving loads requiring smooth surface finishes.
Yes. Our in-house die design team produces custom H13 extrusion tooling directly from your CAD files (DWG, STEP, DXF). New dies are manufactured in 7-10 days, with first-article inspection samples submitted for buyer approval prior to mass extrusion.
Hard anodising (15-25 microns) is highly recommended. It creates an extremely durable aluminium oxide outer layer that resists continuous yarn friction, protects against humidity in textile mills, and prevents thread snagging.
Need Custom Aluminium Loom Beam Extrusions?
Share your technical drawings, alloy specs, and target quantity. Our engineering team will review your requirements and provide a competitive FOB/CIF quotation.
