Extruded Heat Sinks
Cost-effective thermal management profiles with optimized fin ratios. Ideal for LED drivers, power supply modules, motor drives, and audio amplifiers.
Engineering Precision
High-Efficiency Aluminium Heat Sink Manufacturer
At HAQ Aluminium, we design and extrude high-performance aluminium heat sinks engineered to deliver maximum thermal conductivity and rapid heat dissipation. Leveraging 50+ years of metal alloy expertise dating back to 1972, our production plant in Lahore combines advanced billet heating, precision extrusion dies, and tight dimensional control to support global B2B procurement demands.
Whether you require standard high-aspect fin profiles for power electronics or specialized liquid-cooled aluminum cold plates for EV charging infrastructure and solar inverters, our engineering team ensures optimal thermal performance across demanding operating environments.
- High Thermal Conductivity (180–209 W/m·K)
- Primary 6063-T5/T6 & 6061-T6 Billet Stock
- Black Anodizing for High Emissivity
- Precision CNC Machining & Surface Flatness
50+Years Industry Leadership
Product Lineup
Comprehensive Heat Sink Solutions for Global Buyers
Engineered to accommodate distinct dissipation thermal requirements, space constraints, and mounting configurations across electronic and industrial sectors.
Skived Fin Heat Sinks
Ultra-thin fin construction (down to 0.3mm fin thickness) creating exceptionally high surface density for compact telecom chassis and CPU units.
Bonded Fin Assemblies
High aspect-ratio fin configurations designed for heavy-duty industrial power converters, server racks, and high-wattage IGBT assemblies.

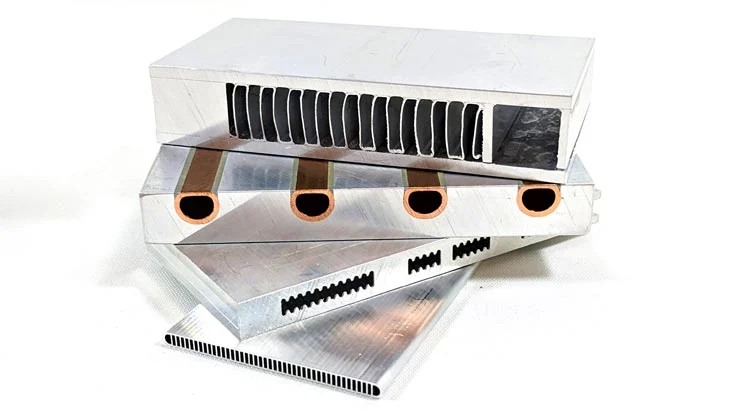

Liquid Cold Plates
Precision CNC-machined internal liquid channels for high heat-flux dissipation in EV battery packs, solar inverters, and high-performance computing.
OEM Specifications
Technical Parameters & Material Standards
Our technical team supports custom tooling development according to your exact mechanical drawings and heat dissipation targets. We publish standard extrusion parameters to simplify specification checks for global procurement managers.
All heat sink shipments are accompanied by chemical composition reports, tensile test results, dimensional measurement sheets, and mill test certificates (EN 10204 3.1).
| Parameter | Specification / Capability |
|---|---|
| Alloy Grades | Alloy 6063-T5/T6 (High Thermal Conductivity), 6061-T6 (High Mechanical Strength) |
| Thermal Conductivity | 180 W/m·K – 209 W/m·K (Alloy dependent) |
| Maximum Profile Envelope | Circumscribing circle up to 250 mm |
| Fin Thickness / Aspect Ratio | Min fin thickness 0.8 mm (Extruded), 0.3 mm (Skived fin options) |
| Surface Finishing | Clear Anodized, Matte Black Anodized (High Emissivity), Chromate Conversion, Powder Coat |
| Secondary Machining | CNC Milling, Drilling, Tapping, Fly-cutting (Surface flatness ≤ 0.02 mm) |
| Quality Standard | DIN EN 755 / EN 12020 / ASTM B221 compliance |
| Tooling Lead Time | 7 – 10 working days for new die construction |
Quality Assurance
International Control Standards & Batch Traceability
From 6-inch virgin aluminium billet inspection to automated aging furnaces and CNC surface finishing, quality control is documented at every step.
Batch Spectrometric & Hardness Verification
Every extrusion batch undergoes optical emission spectrometry to verify alloy chemical limits alongside Webster hardness testing post-aging for uniform structural integrity.
Anodizing & Emissivity Testing
Black anodized heat sinks are audited for film thickness (10–25 microns), cross-hatch adhesion, and salt-spray resistance to maximize thermal radiation performance.
Procurement FAQ
Frequently Asked Questions by Sourcing Managers
We primarily utilize alloy 6063-T5/T6 for high thermal conductivity (approx. 200-209 W/m·K) and excellent extrudability, and alloy 6061-T6 for applications requiring higher structural mechanical strength and post-CNC machining rigor.
Yes. Our in-house toolroom engineers custom H13 steel dies based on your STEP, DWG, or DXF files. Tooling is completed within 7 to 10 working days followed by dimensional sample validation.
We offer clear anodizing, black anodizing (enhancing surface thermal emissivity), chromate conversion coating (surtec/alodine), and powder coating according to ISO and ASTM international standards.
Each production lot undergoes chemical spectro-analysis, Webster hardness testing, 3D CMM dimensional inspection, flatness verification (tolerance ≤ 0.02 mm), and salt spray testing for coated products. Mill test certificates (EN 10204 3.1) are supplied with all shipments.
Manufacturing Location
Lahore Extrusion Plant & Head Office
Plant & Export Facility
- AddressHaq Aluminum Industry, J88V+4H5, Bhamma Road, Jhuggian Jodha, Lahore, Punjab, Pakistan
- Export Contacts+92 317 811 1453 · +92 328 496 8283
- Engineering Desk[email protected]
Download Full Heat Sink Profile Catalogue
Access technical die dimensions, weight-per-meter specifications, and alloy conductivity matrices for your thermal engineering team.
Get Catalog
