Engineered for extreme structural durability, atmospheric chemical resistance, and precise architectural tolerances. Select a product category to initialize live inquiry.

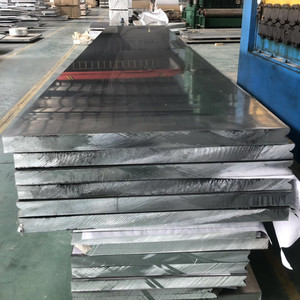

Custom gauge options with mill-precision surface embossing. Features high ductility, excellent thermal conductivity, and custom cutting, punching, and bending adaptability.

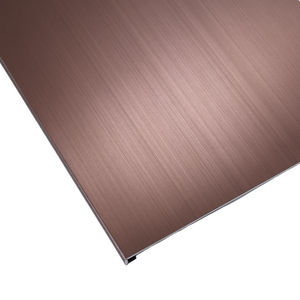

High-precision decorative metal sheets with an electrochemically sealed anodized oxide film. Ideal for luxury architectural interiors, wall cladding, and premium cabinetry.

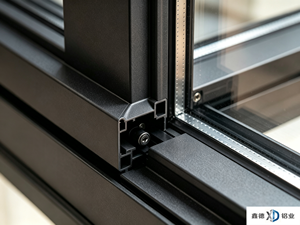

Electrostatically sprayed polyester and PVDF powder-coated extrusions engineered to eliminate color degradation, chalking, and salt-spray oxidation in harsh environments.
Strain-hardened and partially annealed aluminum alloy stock providing the optimal mechanical balance between tensile strength and cold-forming workability.

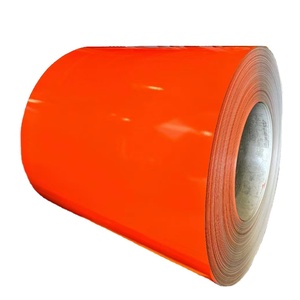

Continuous roll-coated aluminum coil utilizing multi-bake organic coatings (PE/PVDF). Designed for high-speed stamping, profile roll-forming, and metal roofing manufacture.
Heavy-gauge structural plate available with full custom CNC routing, plasma cutting, and precision welding services for industrial framework and machinery structures.
High-torsion structural extrusions processed under strict heat-treatment regimes. Engineered for zero-flex modular chassis assemblies, sim-racing rigs, and automation frames.

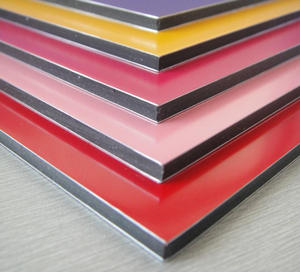

Exterior architectural facade panels comprising a low-density polyethylene or mineral fire-retardant core bonded between two skin sheets of color-coated aluminum.
When procuring coated aluminum products from Pakistan, technical buyer evaluation centers on metallurgical temper stability, paint film adhesion chemistry, micro-inch dimensional tolerances, and environmental anti-corrosion life cycles. Pakistani manufacturing hubs—specifically centered around Lahore and Punjab industrial corridors—have evolved to meet international ASTM, EN, and Qualicoat benchmarks through fully integrated billet casting, extrusion, chromate-free pre-treatment, and automated roller/powder coating lines.
Polyester (PE) coatings provide high gloss and cost-effective performance for interior decorative panels and short-to-medium-term outdoor signage. Polyvinylidene Fluoride (PVDF / Kynar 500), by comparison, provides a fluorocarbon resin structure with atomic carbon-fluorine bonds. This confers exceptional UV degradation resistance, zero chalking under high ambient thermal loads, and salt-spray immunity exceeding 3,000 hours in marine or polluted industrial atmospheres.
| Alloy Series | Common Tempers | Coating Compatibility | Tensile Strength (MPa) | Primary Industrial Applications |
|---|---|---|---|---|
| 1000 Series (e.g., 1050, 1060, 1100) | O, H14, H24 | PE Coating, Anodizing, Embossing | 80 - 145 | Chemical equipment, cookware stock, decorative embossed coils, transformer strips. |
| 3000 Series (e.g., 3003, 3105) | H14, H24, H18 | PVDF, PE Roll Coating, ACP Skins | 140 - 210 | Architectural roofing, ACP building facades, insulation jacket sheets, rain gutters. |
| 5000 Series (e.g., 5052, 5083) | H32, H34, O | Marine PVDF, Anodizing, FEVE | 210 - 310 | Marine hulls, highway signage, structural tankers, aggressive chemical plants. |
| 6000 Series (e.g., 6063, 6061) | T5, T6, T651 | Powder Coating, Anodizing, Woodgrain | 200 - 350 | Curtain wall mullions, thermal break windows, solar framing, sim-racing chassis. |
The operational environment in Pakistan—spanning humid, saline coastal microclimates in Karachi to intense UV radiation and temperature fluctuations (0°C to +50°C) across Punjab and Sindh—demands precise material engineering. Coated aluminum suppliers in Pakistan deliver targeted solutions for both domestic infrastructure and regional export destinations across the GCC, East Africa, and Central Asia.
Commercial hubs in Karachi, Lahore, and Islamabad heavily specify 3mm to 6mm PVDF-coated Aluminum Composite Panels (ACP) and powder-coated 6063-T6 curtain wall extrusions. The high UV index in South Asia demands fluorocarbon coatings that resist chalking and retain color stability over a 20-year structural lifecycle.
With Pakistan's rapid expansion of commercial solarization, local aluminum manufacturers extrude and supply anodized and coated framing sections. These profiles withstand high wind-load bending forces while offering superior galvanic corrosion protection on industrial factory roofs.
Centering around the textile manufacturing belts of Faisalabad and Gujranwala, custom-extruded aluminum loom beam sections, balanced tube profiles, and slitted aluminum strips provide low-inertia rotational stability and resistance to process humidity.
The aluminum processing and coating industry in Pakistan is undergoing a major technological transformation driven by economic reforms, environmental compliance requirements, and international trade dynamics:
Rooted in over five decades of family metalworking experience since 1972, HAQ Aluminium represents Pakistan's premier integrated extrusion, coating, and metal fabrication facility. Operating out of a state-of-the-art manufacturing plant in Lahore, our operations eliminate third-party supply chain friction by maintaining complete quality control from raw aluminum billet to final packaged product.
Equipped with modern CNC wire-EDM and vertical machining centers, our tooling department translates CAD DXF/STEP files into precise extrusion dies within 10 to 15 working days, expediting first-article sample approvals.
Our overhead conveyorized coating line applies architectural-grade polyester and fluorocarbon powders at controlled micro-tonal thicknesses, guaranteeing uniform film build, superior corner coverage, and flawless cross-hatch adhesion.
Every production batch undergoes comprehensive quality control protocols: Spectrographic alloy verification, Webster/Barcol hardness testing, coating thickness gauges (ISO 2360), MEK solvent rub tests, and salt spray fog testing (ASTM B117).
Material is packed using non-staining protective film interleaving, moisture-barrier kraft wrapping, edge-protectors, and custom heat-treated wooden pallets built for secure 20ft and 40ft ocean container shipping.
Key technical and commercial considerations for sourcing coated aluminum profiles, coils, and composite panels from Pakistan.
Send us your project drawings (CAD/DXF/STEP), coil specification requirements, or coating shade specifications (RAL / Pantone). Our metallurgy and engineering team will provide a comprehensive quotation within 24 hours.
